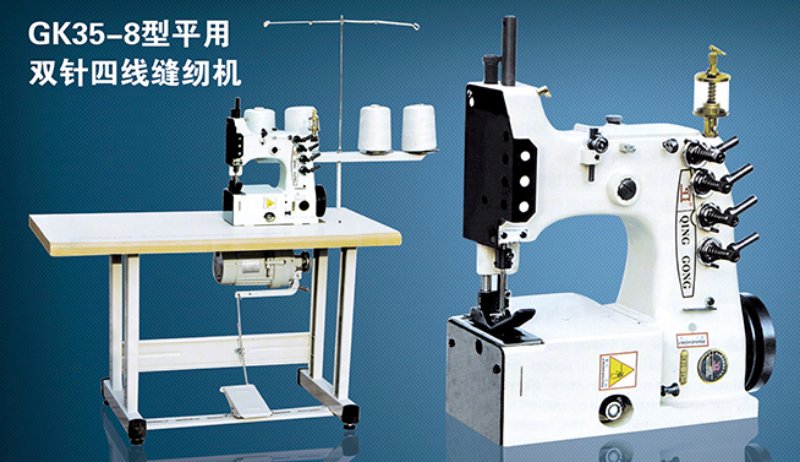

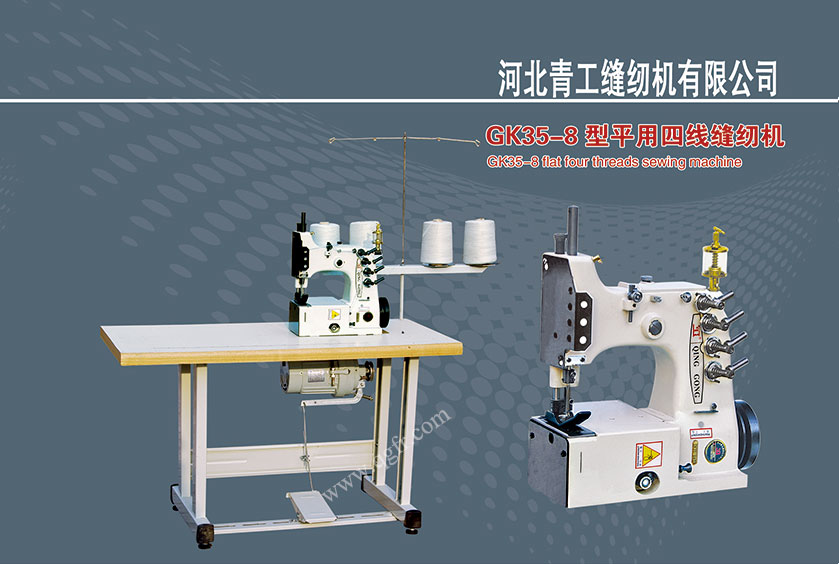

GK35-8 Double Needles Bag Sewing Machine
product description
GK35-8 Double Needles Bag Sewing Machine：Two Needle, Plain Feed, Flat bed, Four Thread Chain Stitch Machine for seaming and hemming the bottom of light to heavy weight fabric such as PP/PE woven cloth or jute bags. This model can produce a twin seam with the double needles and loopers. It is recommended when strong seam is required.
1. Stitch type: double thread chain, 401, 401
2. Thickness of material: up to 8 mm
3. Standard needle: 80800x 250#
4. Stitch length: adjustable from 6.5-11 mm, standard setting 8 mm
5. Needle distance: 6 mm, staggered
6. Speed: up to 2000 RPM, depending on sewing material and operation
7. Weight net: 36 kg
1. Stitch type: double thread chain, 401, 401
2. Thickness of material: up to 8 mm
3. Standard needle: 80800x 250#
4. Stitch length: adjustable from 6.5-11 mm, standard setting 8 mm
5. Needle distance: 6 mm, staggered
6. Speed: up to 2000 RPM, depending on sewing material and operation
7. Weight net: 36 kg
Technical Parameters
| Speed (max.) | 2000rpm. |
| Stitch length | 6.5-11mm |
| Presser lift | 11-16mm |
| Needles distance | 6mm |
| Sewing thickness | 8mm |
| Stitch type | 401 401 |
| Needle type | S80800×200-250# |
| Pulley diameter | φ114mm |
| Power | 370w |
| Weight | 32KG |
| Dimension | 50cm*50cm*35cm |
